Product Overview

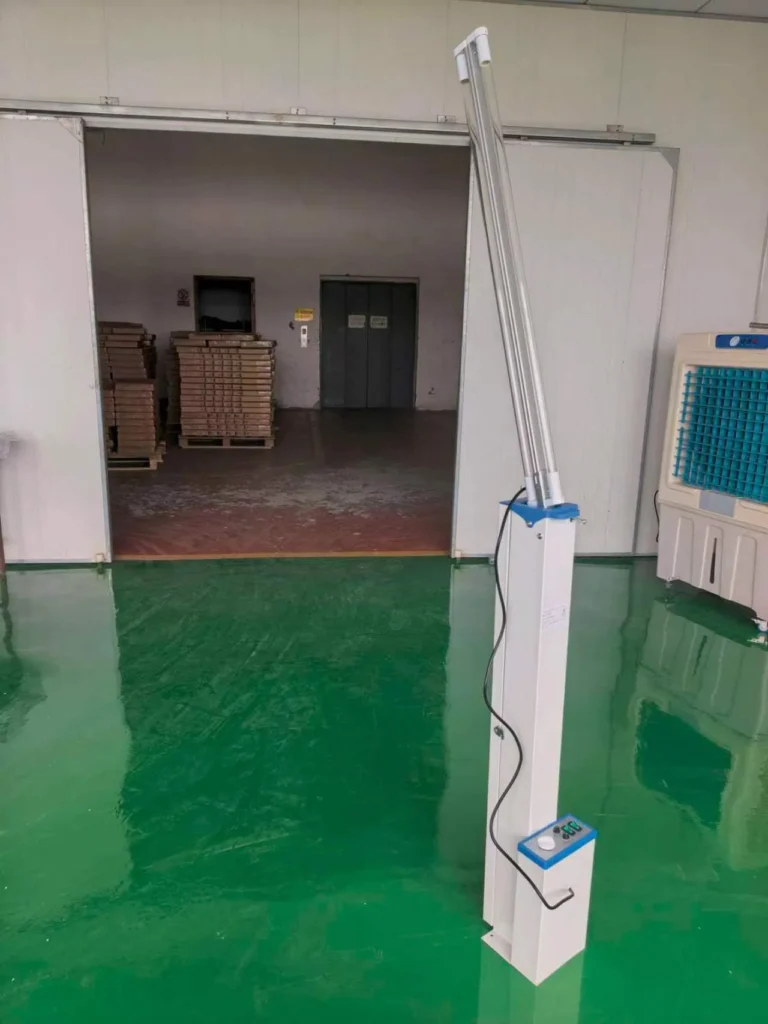

SM‑UV30 UV Sterilization Trolley is a mobile ultraviolet disinfection cart, adopting 253.7 nm UV‑C germicidal ultraviolet light to achieve efficient surface and space sterilization. Flexible adjustable lamp arm, built‑in timing function, movable trolley design, widely used for wards, clinics, laboratories, schools and other public‑area disinfection.
Main Features
✅ Dual 30W UV‑C germicidal lamps, wavelength 253.7 nm ✅ UV radiation intensity ≥100 μW/cm² at 1‑meter distance from lamp center ✅ Adjustable lamp arm: length 920 mm, rotation angle 0‑150° ✅ Timing function: 0‑120 minutes setting range ✅ Fuse safety protection ✅ Mobile trolley design, easy to move between different rooms ✅ Suitable for hospital wards, clinics, laboratories, offices and schools
Technical Specifications
| Item | Specification |
|---|---|
| Model | SM‑UV30 |
| Power Supply | 220V±22V, 50Hz±1Hz |
| UV Lamp Power | 30W × 2 |
| UV Wavelength | 253.7 nm |
| UV Radiation Intensity | ≥100 μW/cm² (1 m from lamp center) |
| Timer Range | 0‑120 min, max timing error ≤15 min |
| Lamp Arm Length | 920 mm ±2 mm |
| Lamp Arm Adjustment Angle | 0‑150° |
| Safety Protection | Fuse protector |
| Working Ambient | Temp:5‑40℃, Humidity ≤80% |
| Packing Size | 111 × 23.2 × 25.5 cm |
| Gross Weight | 8 Kg |
