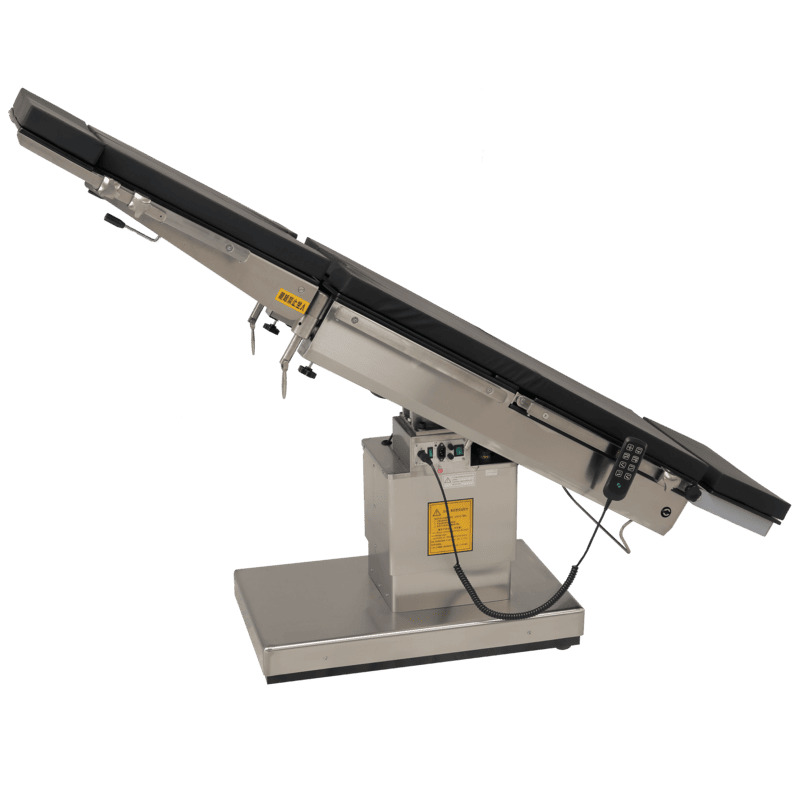

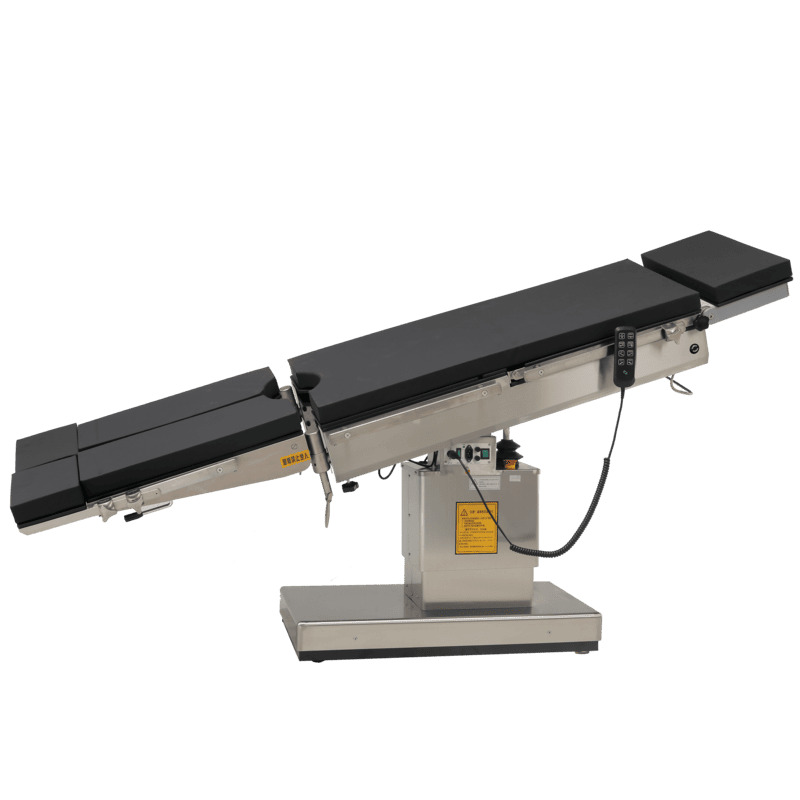

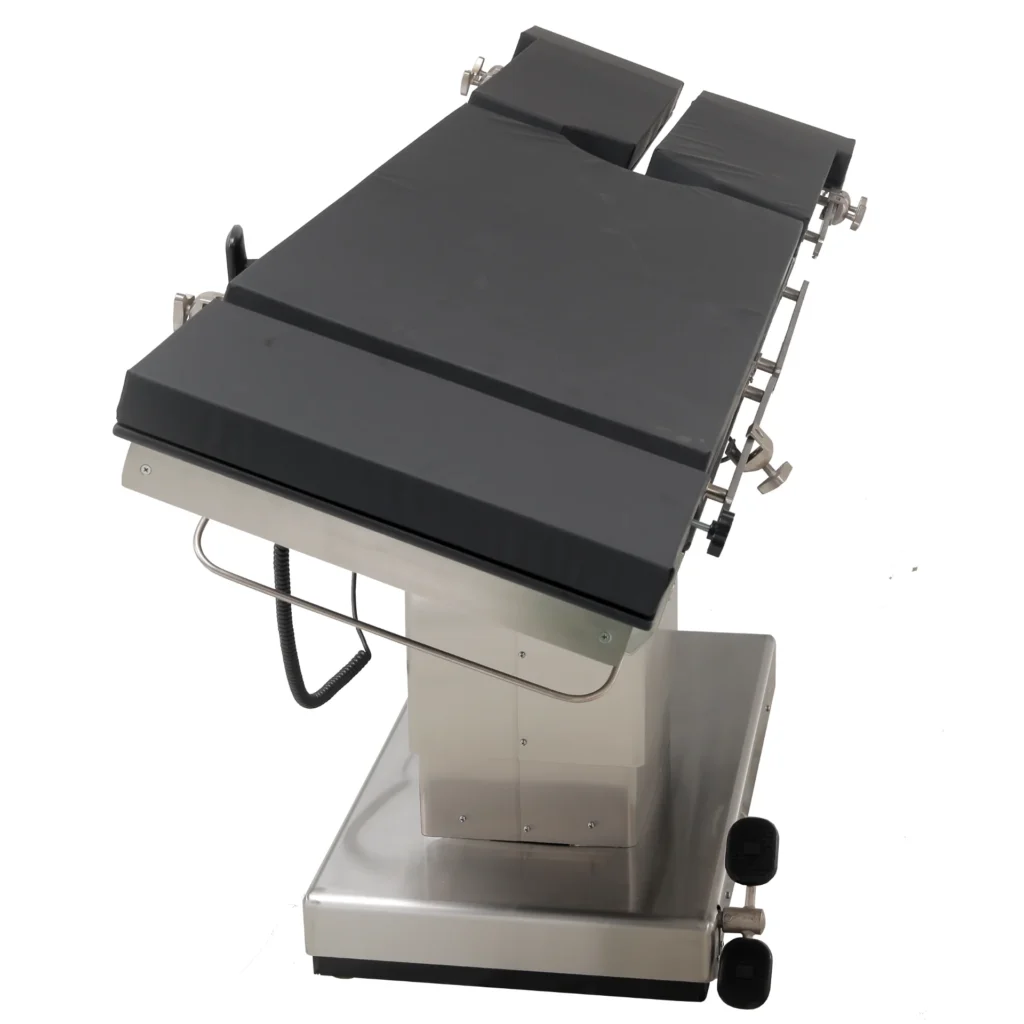

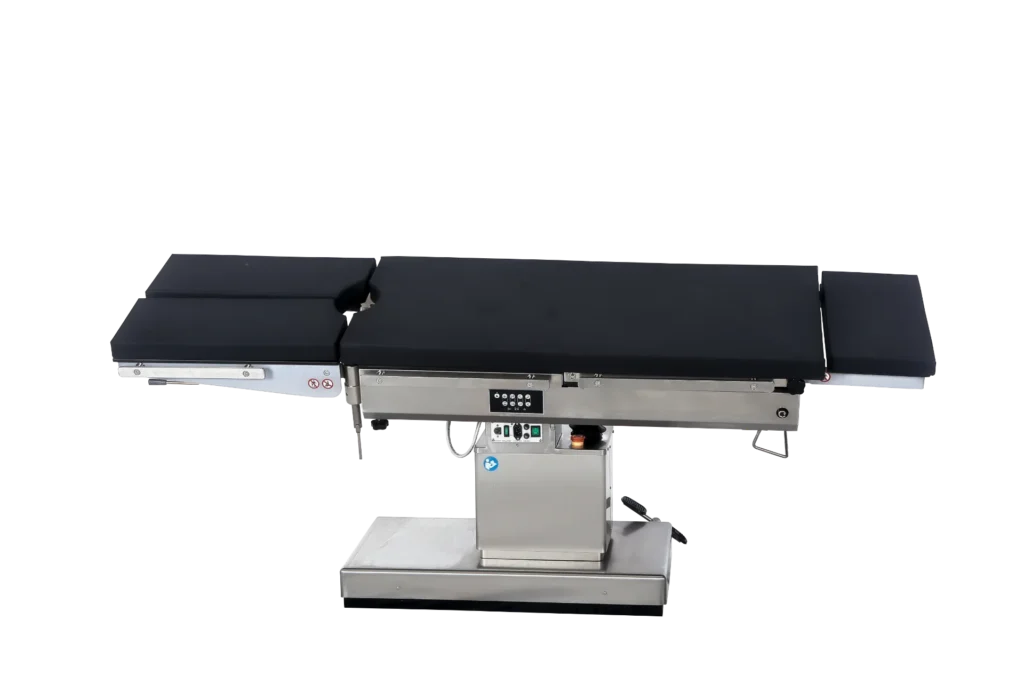

SM-OT009 Electric Surgical Table
Product Overview
Designed for surgeries on various human body parts in hospital operating rooms, the SM-OT009 Electric Surgical Table features flexible adjustments, X-ray compatibility, and reliable safety, fitting the needs of hospitals and clinics.
Key Features

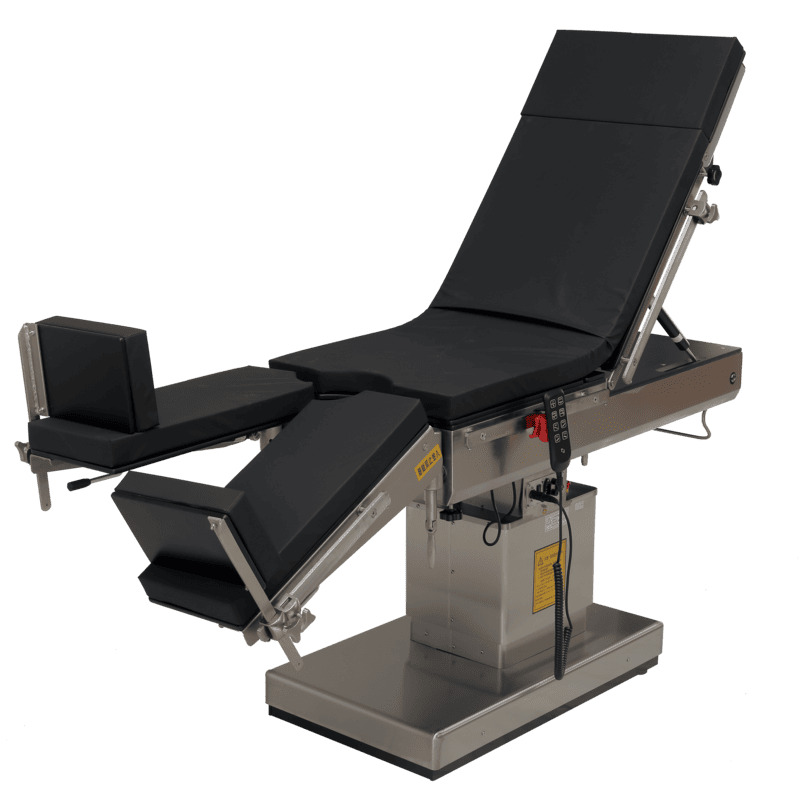

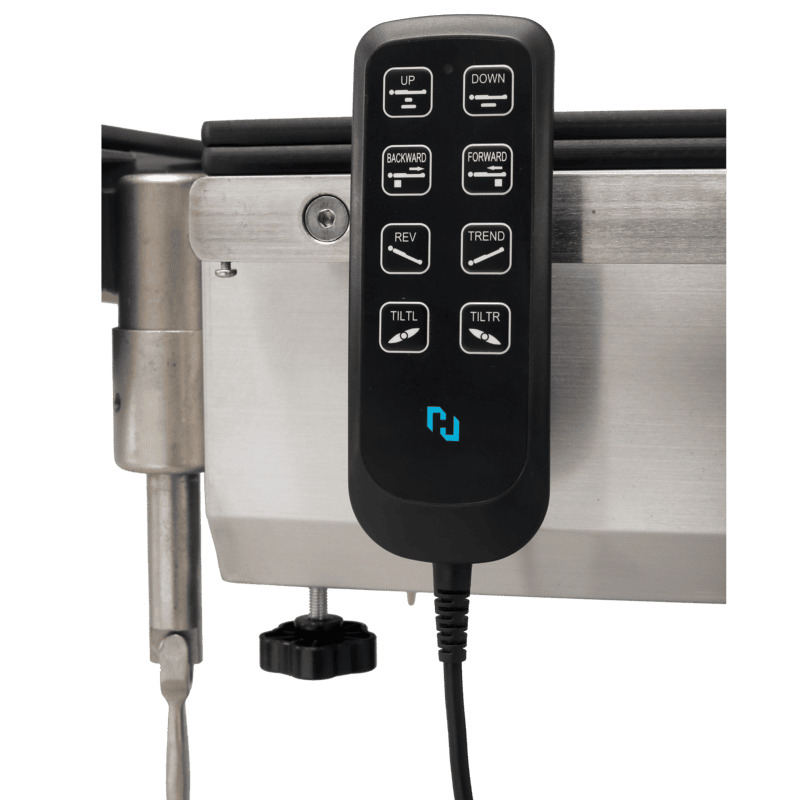

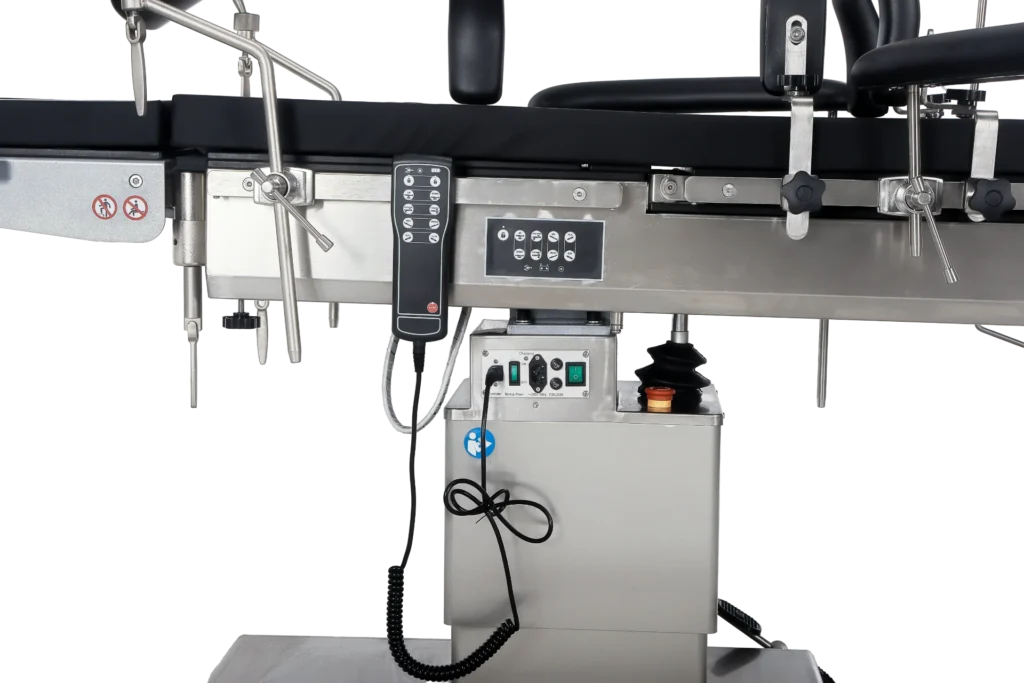

- Flexible Adjustments: Electric control for tabletop tilt (forward/backward, left/right), height lifting, and translation; manual adjustment (pneumatic spring/ratchet mechanism) for head/back/leg plates. Leg plates are foldable, detachable, and easy for urological surgeries.
- X-ray & Durability: High-strength composite tabletop supports X-ray exams and C-arm use. Brushed stainless steel covers (column, base, side panels) with powder-coated/chrome-plated accessories. Optional mattresses (high-density sponge or memory foam).

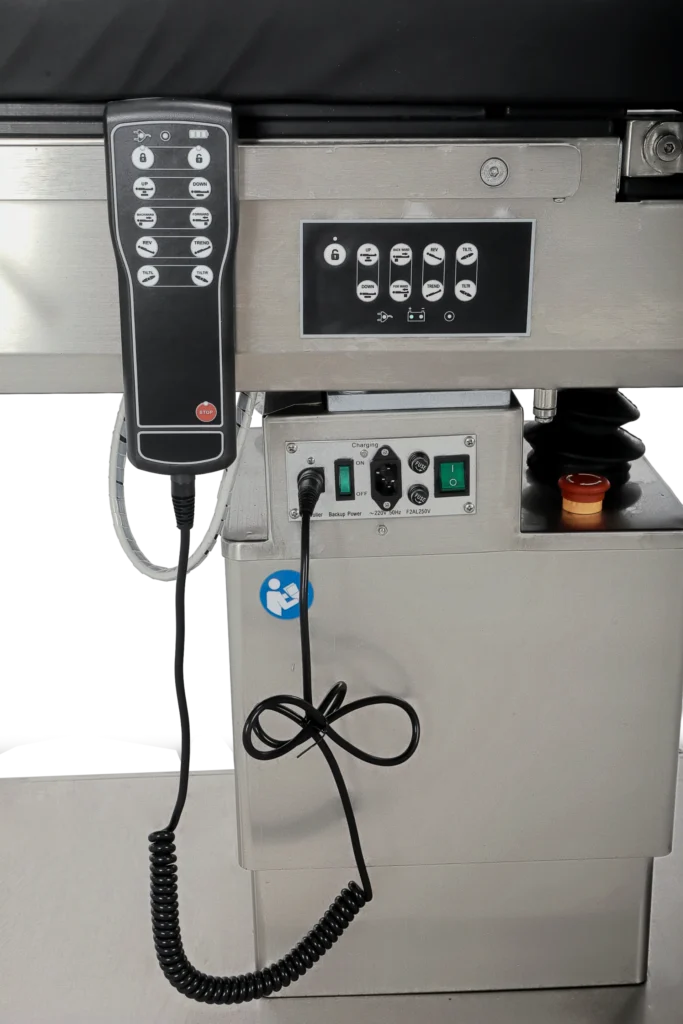

- Safety: 24V DC voltage; built-in emergency power supply (auto-charges, switches on during power outage).
Technical Specifications
| Specification | Details |
|---|---|
| Tabletop Size | Length ≥2080mm, Width 520mm |
| Height Range | 745-995mm (Lifting distance ≥250mm, lockable) |

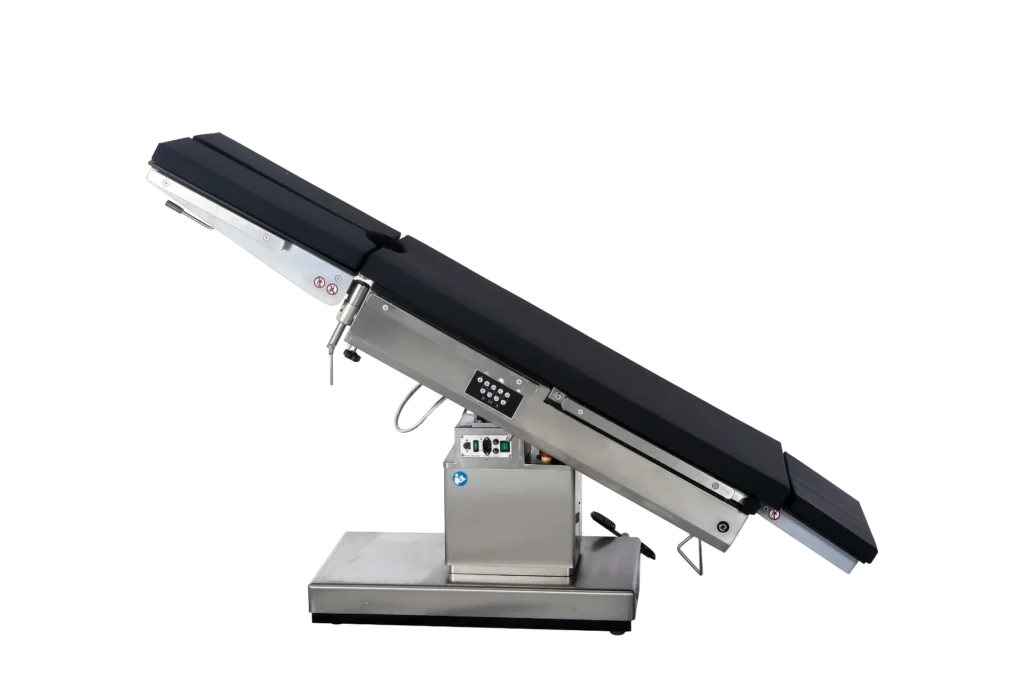

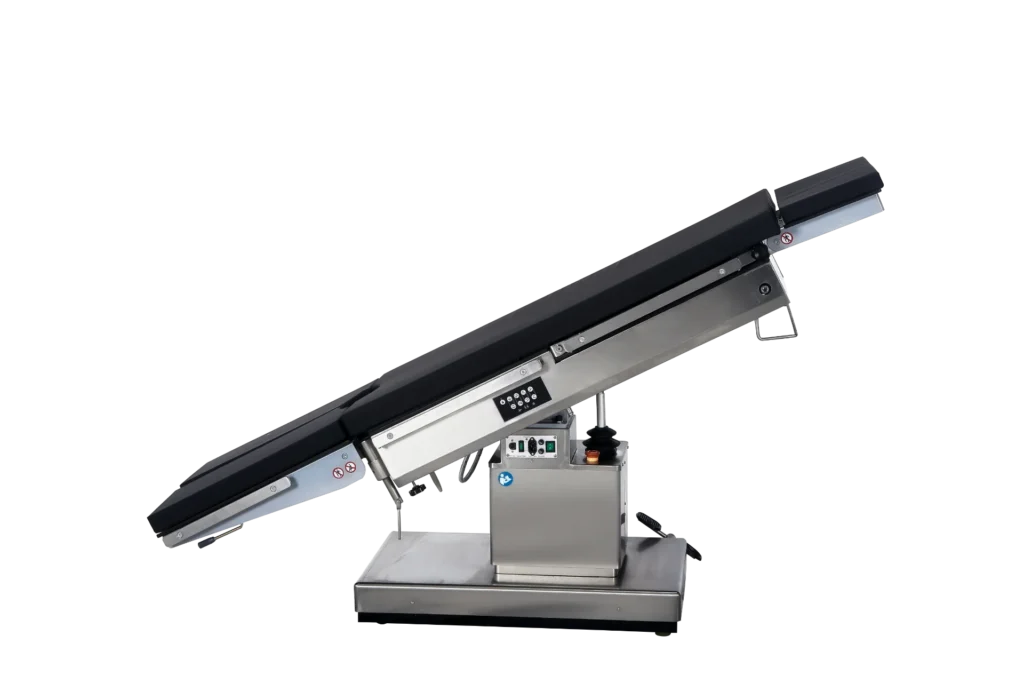

| Tilt Angles | Forward/backward ≥25°; Left/right ≥15° |

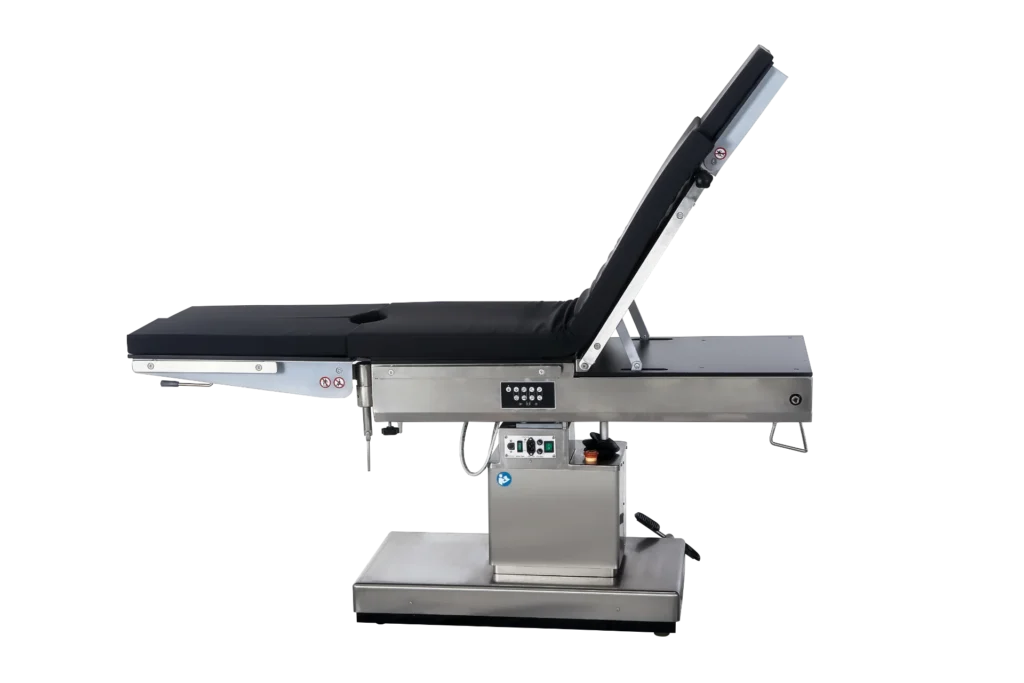

| Plate Adjustments | Head plate: Up ≥45°, Down ≥90°; Backrest up ≥50°; Leg plate: Down ≥90°, Abduction ≥90° (detachable) |
| Waist Plate Lift | ≥80mm |
| Tabletop Translation | ≥400mm |
| Power Supply | AC 220V±10%, 50Hz |
| Safe Load | ≥135kg |
Standard Configuration
1× Surgical table, 1× Body support frame, 1× Shoulder support frame, 1× Anesthesia screen frame, 1× Leg support frame, 1× Arm support plate, 1× Mattress set
