SM‑LT053P Shadowless Operating Lamp

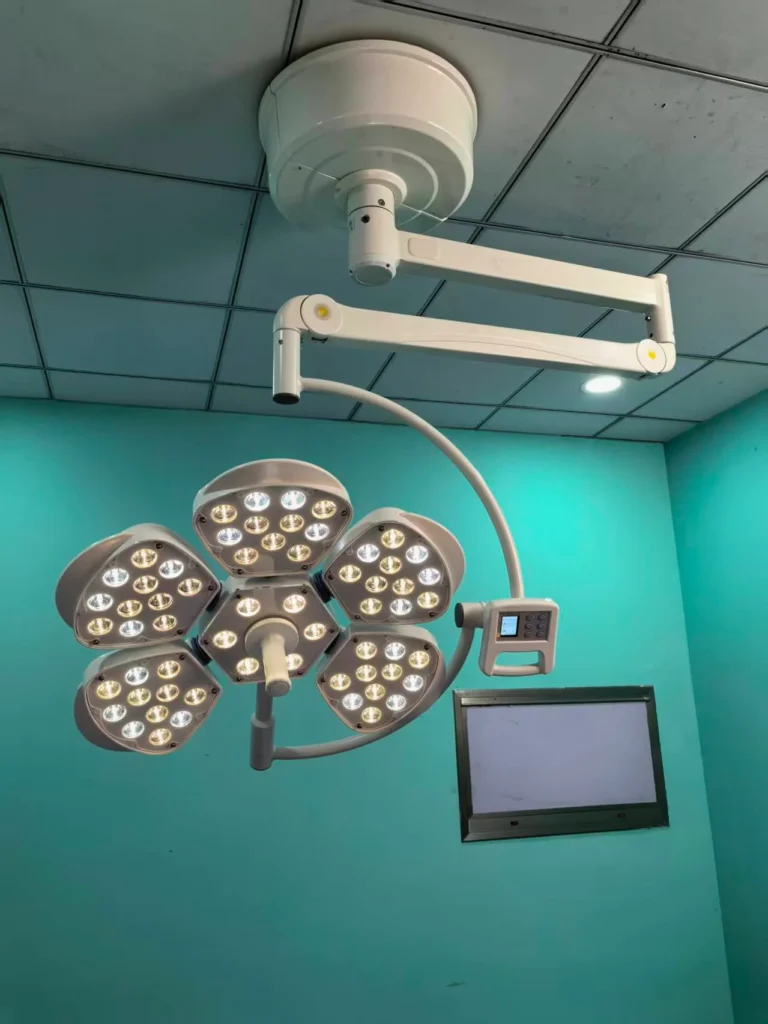

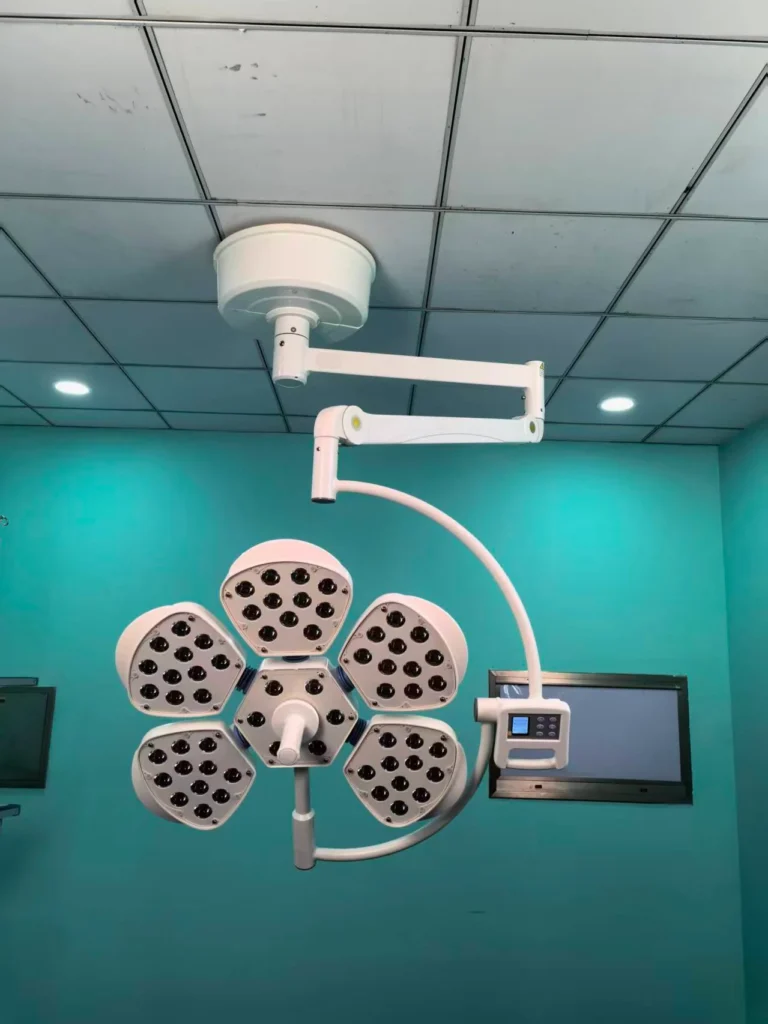

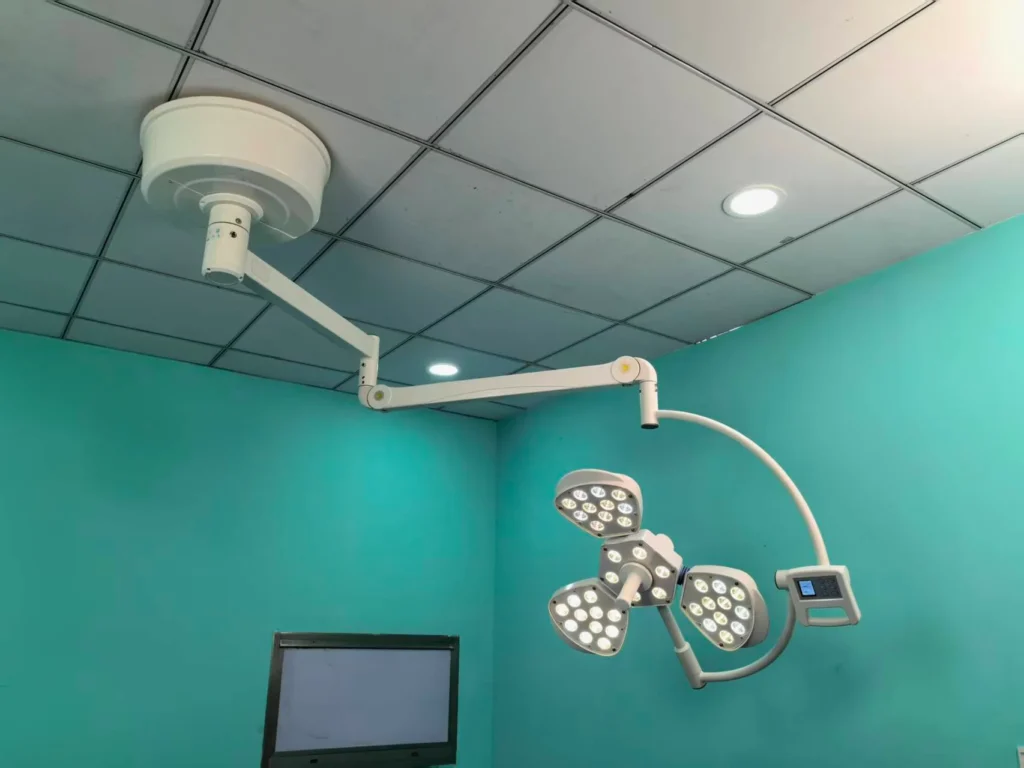

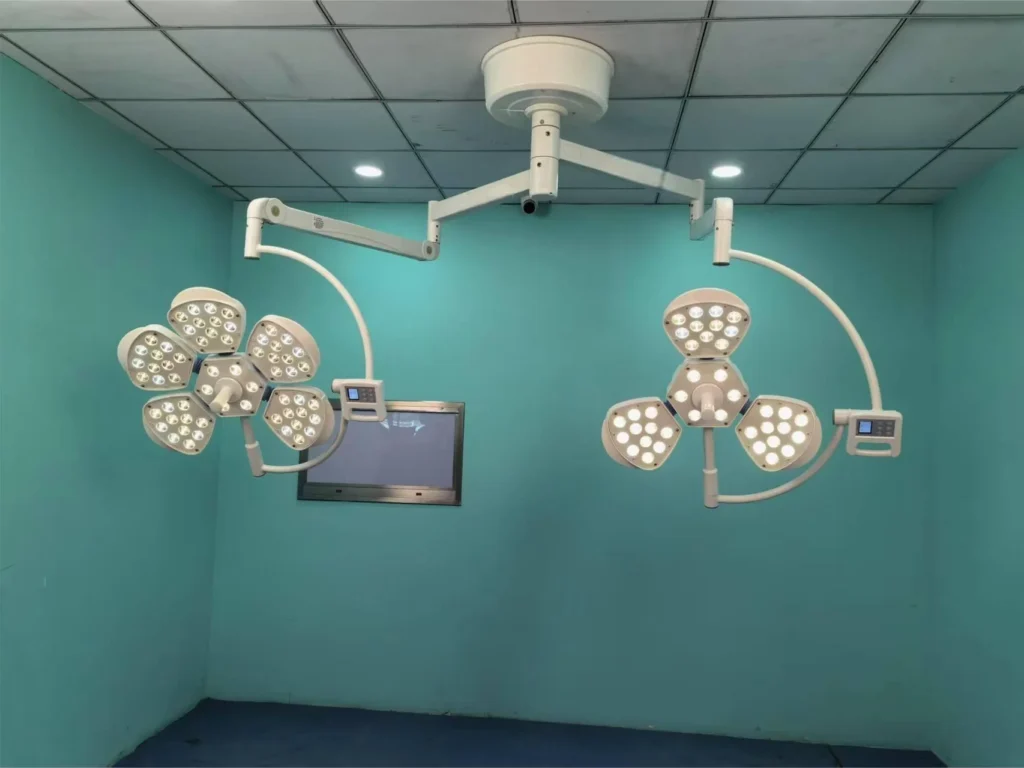

SM‑LT053P is a premium petal‑shaped ceiling‑mounted LED shadowless operating lamp.
✅ Exclusive appearance design patent: each petal tip is equipped with an independent handle, bringing more flexible and convenient manipulation during surgery.
Ultra‑thin lamp‑head structure reduces overall weight for smoother operation. The petal lamp head adopts unique detachable cover design, greatly simplifying bulb maintenance and replacement compared with conventional models. Lamp housing is high‑grade PP material, non‑toxic, odor‑resistant, easy‑to‑clean, disinfectable and high‑temperature resistant.
Product Features

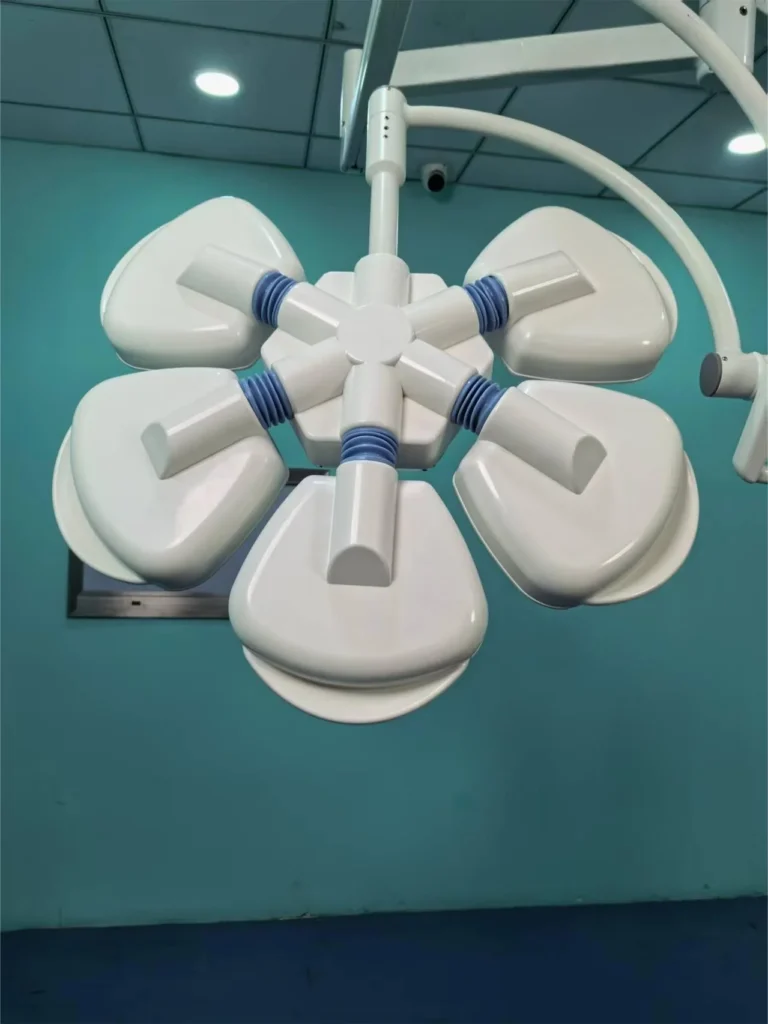

- Modern Laminar‑flow Lamp Head Ultra‑thin streamlined lamp‑head design. Every petal is fitted with separate handle for flexible movement. Detachable handles support easy disinfection and precise positioning.
- Real Cold Light LED Source Eco‑friendly LED cold light source with service life over 80,000 hours, 40‑times longer than halogen lamps. Under equal brightness, LED consumes only 1/10 energy of incandescent lamp and half of halogen lamp. Constant soft color temperature close to natural light, lower ultraviolet radiation. Dual‑color‑temperature bulbs avoid visual dizziness for surgeons.
- Excellent Depth‑of‑Field Lighting Computer‑aided modular optical design with multi‑LED light column focusing. Adjustable color temperature 3500K‑5000K simulates natural light, meeting varied surgical lighting needs. Built‑in laparoscopic surgery mode.
- Advanced Control System Button control for power, illuminance and color‑temperature adjustment. Multi‑channel centralized control with identical power output for multiple lamp units.
- Heavy‑Duty Universal Suspension System Rotating boom constructed from 50*70 standard rectangular tube for enhanced safety and aesthetics. One‑piece ABS‑molded carbon‑brush access cover with hidden screw‑free fixation. High‑performance spring balance arms enable lightweight handling, accurate positioning and large adjustment range.
Main Technical Parameters
| Item | 5 Petals Lamp Head | 3 Petals Lamp Head |
|---|---|---|
| Illumination (adjustable) | 40000‑180000 Lux | 40000‑160000 Lux |
| Number of lamp beads | 61 pcs | 39 pcs |
| Average lamp bead life | ≥80,000 h | ≥80,000 h |
| Adjustable Color Temperature | 3500K ~ 5000K | 3500K ~ 5000K |
| Adjustable Color Index | 85 ~ 98 | 85 ~ 98 |
| Depth of focus | ≥1200 mm | ≥1200 mm |
| Working radius | 600‑1800 mm | 600‑1800 mm |
| Adjustable spot diameter | 160‑280 mm | 160‑280 mm |
| Brightness control | 1%‑100% | 1%‑100% |
| Irradiance | 6 w/m² | 6 w/m² |
| Ultraviolet irradiance | 0.3 w/m² | 0.3 w/m² |
| Supply voltage | AC100‑240V 50/60HZ | AC100‑240V 50/60HZ |
| Best installation height | 2600‑3000 mm | 2600‑3000 mm |
