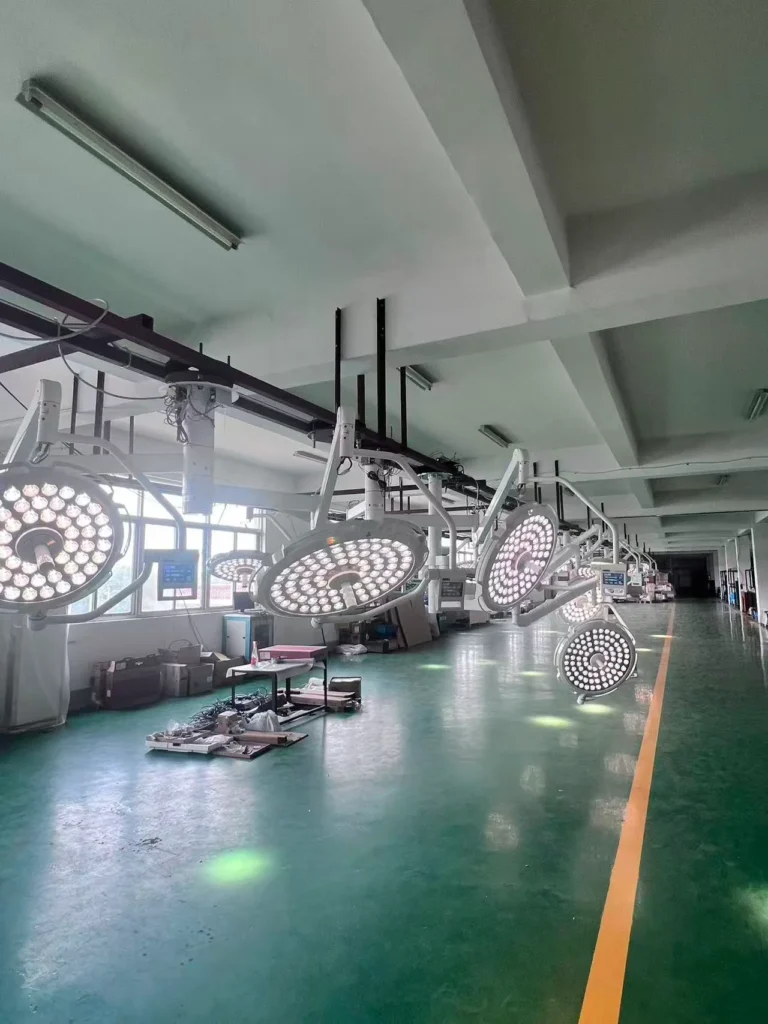

A row of surgical lights hanging on racks in a spacious production facility with large windows and green flooring.

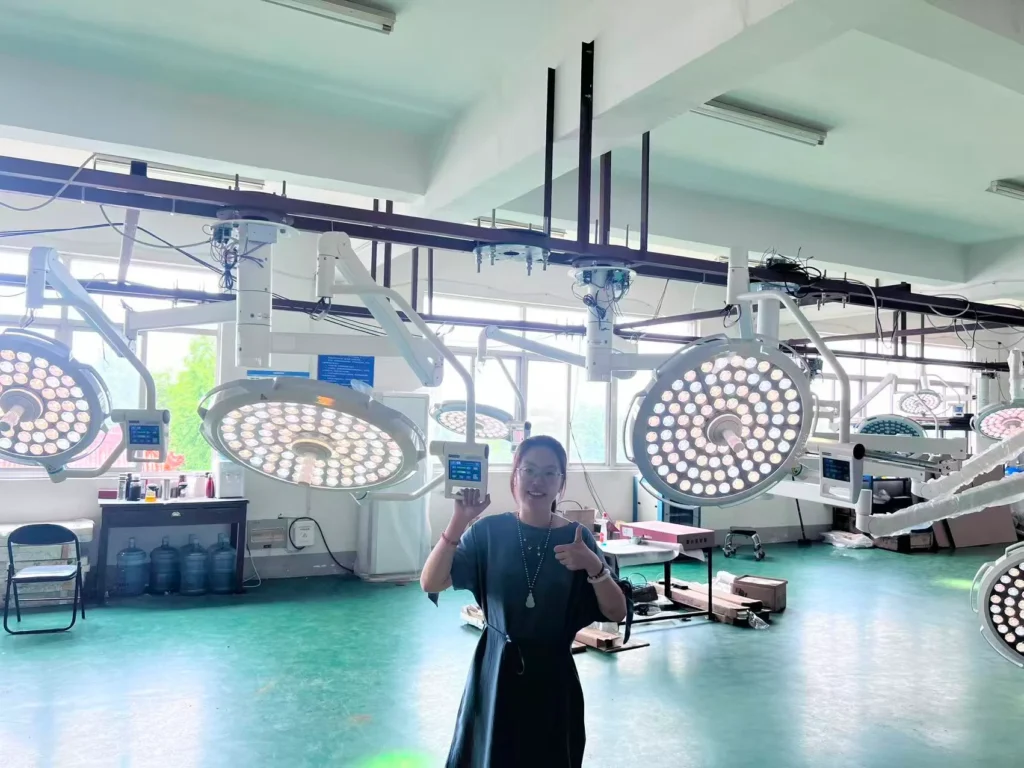

A person in a factory setting standing beneath large LED surgical lights, giving a thumbs-up. Several surgical lights are hanging from the ceiling.

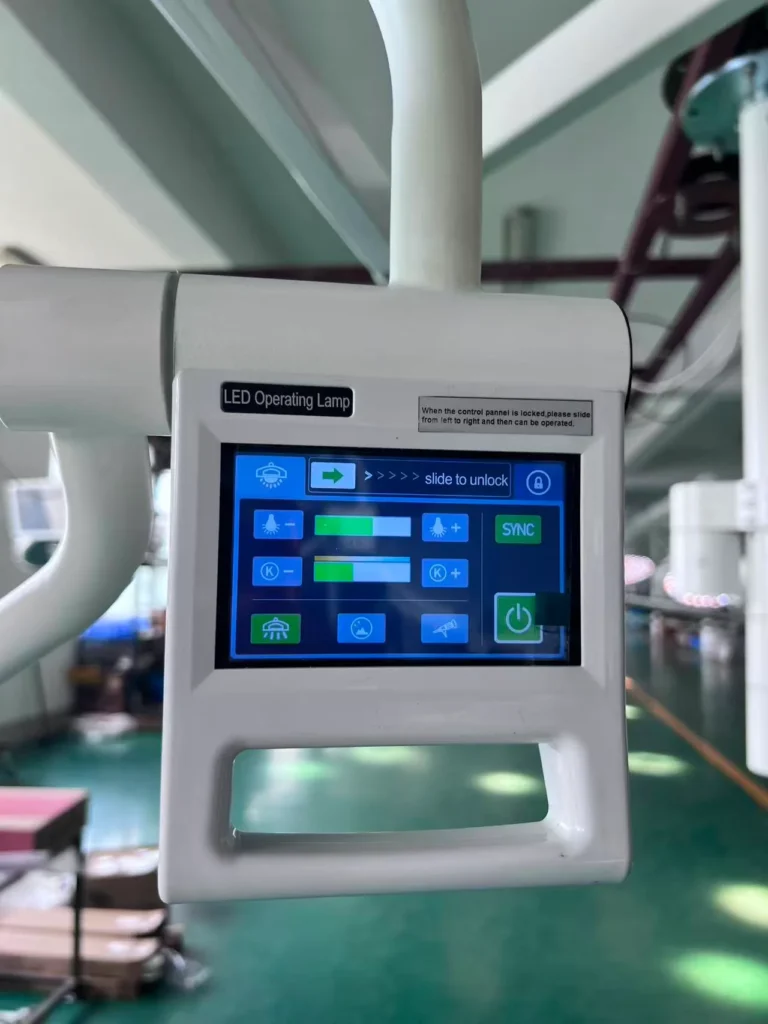

Close-up of a LED operating lamp touchscreen control panel with various icons and controls in a well-lit industrial setting.

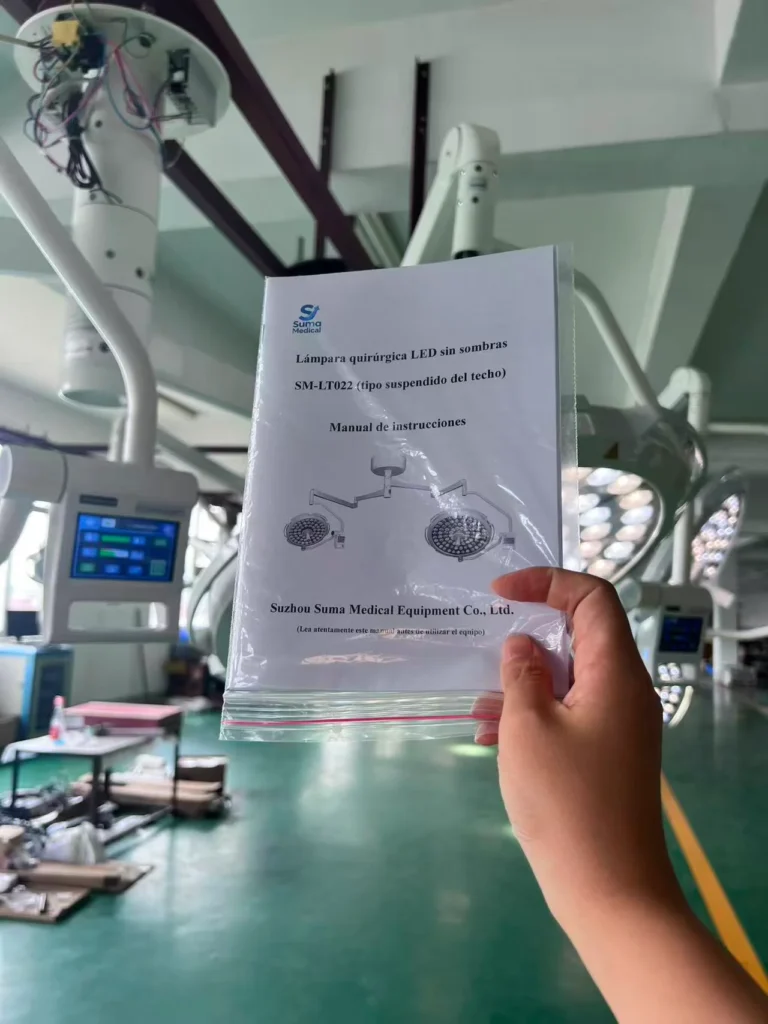

A hand holding the instruction manual for the SM-LT022 surgical LED lamp in a medical equipment facility. The background shows the lamp and related equipment.

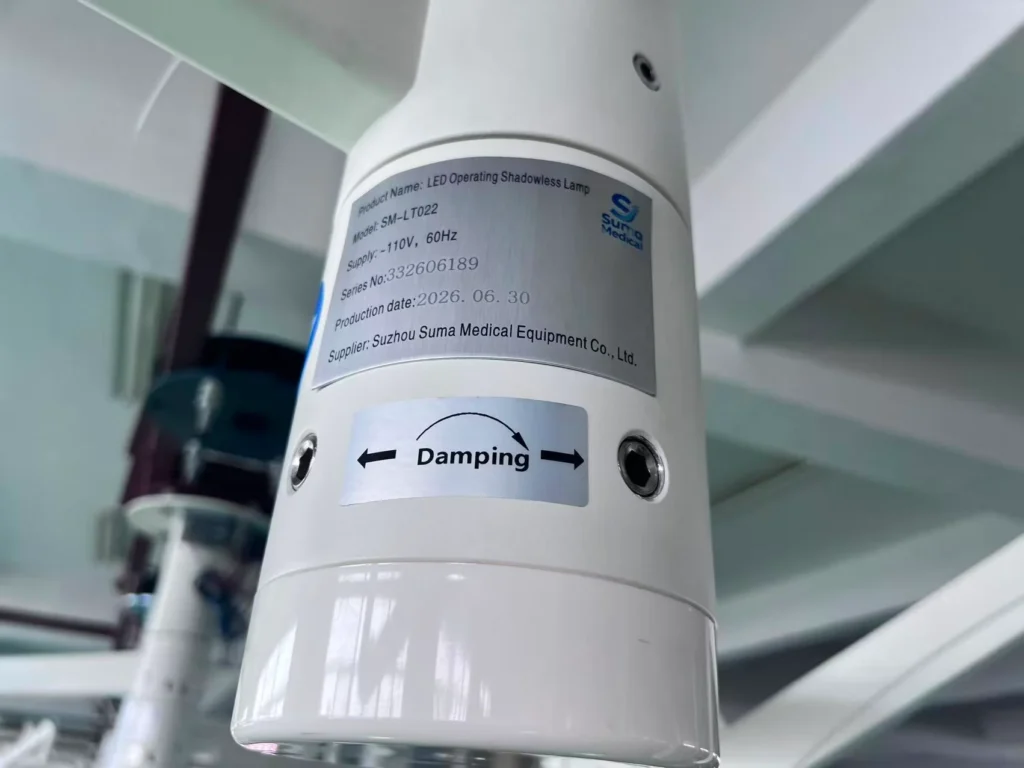

Close-up of a label on an LED operating shadowless lamp showing specifications, production details, and a damping adjustment sign.
Dual ceiling-mounted surgical lights with adjustable arms and multiple LED bulbs in a medical setting.
A row of surgical lights hanging on racks in a spacious production facility with large windows and green flooring.
A person in a factory setting standing beneath large LED surgical lights, giving a thumbs-up. Several surgical lights are hanging from the ceiling.
Close-up of a LED operating lamp touchscreen control panel with various icons and controls in a well-lit industrial setting.
A hand holding the instruction manual for the SM-LT022 surgical LED lamp in a medical equipment facility. The background shows the lamp and related equipment.
Close-up of a label on an LED operating shadowless lamp showing specifications, production details, and a damping adjustment sign.

LED Surgical Shadowless Lamp

Model: SM‑LT022

Key Specifications

Touch Screen

Level

High-end (Premium Type)

Applied Departments

OR

Product Details

SM‑LT022 High‑end Surgical Shadowless Lamp

SM‑LT022 LED surgical shadowless lamp meets lighting requirements for various surgical procedures. It is the perfect lighting equipment for modern and clean operating rooms.

The lamp head adopts integrated circular structure to deliver even light spot. Streamlined ultra‑thin lamp disc (thickness ≤8cm) offers superior laminar flow performance. Aluminum alloy lamp cover ensures outstanding heat dissipation.

Adopting LED cold light source, it produces almost no temperature rise on surgeon’s head and surgical wound. Digital dimming realizes flicker‑free, smooth and wide‑range brightness adjustment. LED modules work independently; partial module failure will not stop the whole lamp from working.

Three lighting modes are available: standard illumination, low‑light illumination and endoscopic illumination, supporting one‑click quick switching. Illuminance and color temperature can be adjusted steplessly to satisfy diverse surgical demands.

Key advantages include sterilizable operating handle, built‑in over‑temperature protection (auto power reduction above 95℃), microcomputer digital control with memory function, and anti‑interference wide‑voltage stable operation.

Equipped with lightweight balance suspension system with six universal joints. The lamp head can be flexibly moved and firmly locked at any height and angle for surgery. This LED lamp outputs only visible light with no infrared or ultraviolet radiation. Low heat generation keeps surgical area cool; average auxiliary irradiation energy is only 3.6 mw/m².

Main Technical Parameters

  • Lamp Head Diameter: 700 mm / 500 mm
  • Center Illuminance: 40000~160000 Lx (700mm head) / 40000~120000 Lx (500mm head)
  • Spot Diameter d10: ≥180 mm
  • Beam Depth: ≥1000 mm
  • Color Temperature: 4000±500K, Adjustable
  • Color Rendering Index: Ra ≥92
  • Maximum Irradiance: ≤400 W/m²
  • Light Source: LED (1W×84) / LED (1W×54)
  • Average Light Source Lifespan: ≥ 50,000 hours

Basic Configuration

  • Rotating Arm Components: 1 set
  • Balance Arms: 2 sets
  • Main Lamp: 1 set
  • Auxiliary Lamp: 1 set
  • Sterilizable Handles: 2 pcs
