Product Overview

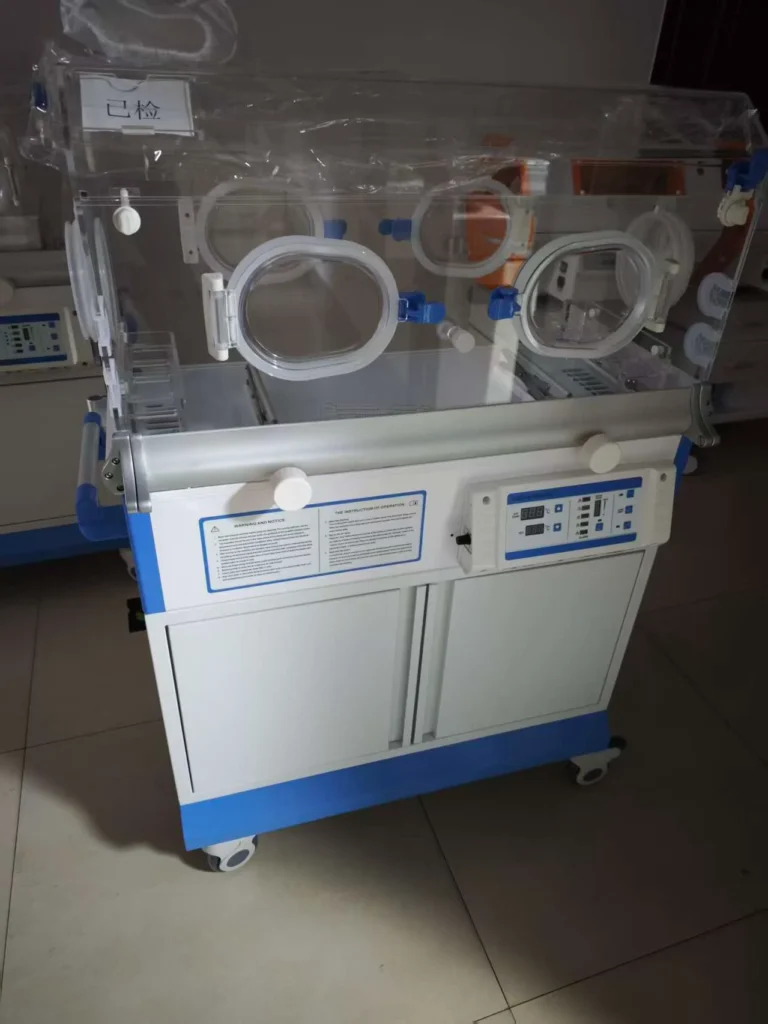

SM‑II100T Infant Incubator is professional neonatal care equipment for hospital maternity and neonatal departments. It adopts microprocessor‑based servo controlled temperature system to create stable, suitable warm‑humid environment for premature and sick newborn babies. Multiple safety alarm mechanisms and triple over‑temperature cut‑off protection ensure infant safety. CE 0197 certified medical device.
Main Features
✅ Microprocessor servo controlled temperature system, Air control mode ✅ Continuously adjustable humidity ✅ Independent LED display for set temperature, alarm temperature and heating power ✅ Power‑on self‑test function ✅ Multi‑channel audible & visual alarms: power failure, over‑temperature, temperature deviation, fan failure, temperature sensor failure ✅ Special setting for temperature above 37℃ ✅ Triple over‑temperature protection with independent cut‑off device for higher safety ✅ Infant bed tilt adjustable at ±12° ✅ Single‑wall hood: 4 operating windows, 2 iris ports, 3 infusion seals ✅ Front door with independent locking device ✅ RS232 communication connector, oxygen inlet, one auxiliary tray ✅ Removable DC axial fan, aluminium alloy structural parts ✅ Water trough capacity:1000mL ✅ 0.5μm air filter for internal air purification
Technical Specifications
| Item | Specification |
|---|---|
| Model | SM‑II100T |
| Power Supply | AC110/220V, 60/50Hz |
| Working Ambient Temperature | 20℃ ~ 30℃ |
| Working Relative Humidity | 30% ~ 75% |
| Ambient Air Flow Velocity | ＜0.3 m/s |
| Air Temperature Control Range | 25℃‑37℃ / 37.1℃‑38℃ |
| Temperature Fluctuation | ±0.5℃ |
| Mattress Temperature Uniformity | ≤0.8℃ |
| Warm‑up Time (from 25℃) | ＜30 min |
| Internal Noise Level | ＜55 dB(A) |
| Infant Bed Tilt Angle | ±12° |
| Mattress Size | 65cm(L) × 37cm(W) |
| Water Trough Capacity | 1000 mL |
| Air Filter | 0.5μm |
| Certification | CE 0197 |
Packing Information
Packed in two plywood cases
- Control & Cabinet unit: 112×66×98cm, N.W.:80Kg, G.W.:110Kg
- Hood unit:98×63×74cm, N.W.:15Kg, G.W.:30Kg
Standard Configuration
Main body (transparent hood, control system, infant bed, water trough), I.V. pole, mattress, cabinet, castors, oxygen inlet, tray
Optional Accessories
‑ BL‑30D Upside phototherapy unit ‑ BL‑100D Downside phototherapy unit
