Product Overview

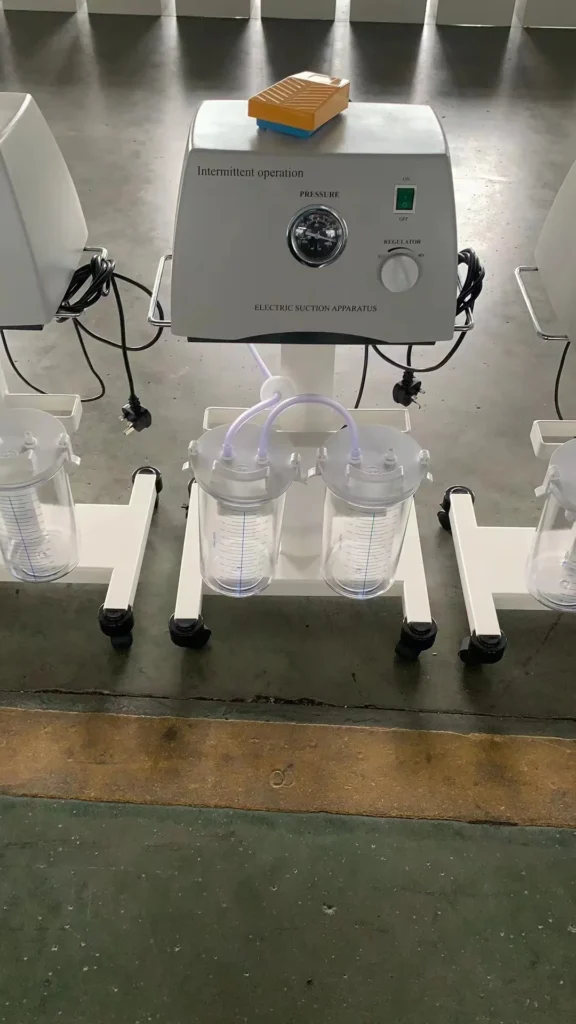

SM‑AP004 is a new‑shape movable medical suction device, widely used in hospital operating rooms and wards. It is designed to remove pus, blood, sputum and other thick liquids from human body efficiently and safely.
Main Features
- One‑piece all‑plastic enclosure, sturdy structure.
- Imported membrane pump for extended service life.
- Low‑noise running, maintenance‑free design.
- Built‑in overflow protection unit, effectively prevents liquid from flowing into pump body.
- Dual control mode: hand switch and foot switch for flexible operation.
- Two large‑capacity plastic liquid vessels 2500ml each, no breaking risk during transportation.
Technical Specifications
| Item | Parameter |
|---|---|
| Model | SM‑AP004 |
| Power Supply | 220V±10%, 50Hz±2% |
| Air Pumping Efficiency | ≥40 L/min |
| Negative Pressure Adjustment Range | 0.013‑0.09 MPa |
| Noise Level | ≤65 dB |
| Input Power | 400VA |
| Liquid Vessel | 2500ml ×2 (Plastic material, anti‑breakage) |
Application Scenarios
- Hospital operating rooms
- General wards
- Clinical treatment for suction of pus, blood, sputum and thick body fluids
