| Technical Parameters | Details |
|---|---|
| Main Frequency | 512 KHz |
| Power Supply | 100-240V / 50-60Hz |
| Dimension | 473417cm |
| Weight | 6KGS |
| High Frequency Leakage (Monopolar) | < 150mA |
| Low Frequency Leakage (Normal Polarity, Intact Chassis Ground) | <10μA |
| Low Frequency Leakage (Normal Polarity, Ground Open) | < 50μA |
| Low Frequency Leakage (Reverse Polarity, Ground Open) | < 50μA |
| Sink Current (140V Applied, All inputs) | < 50μA |
Working Mode & Power Specifications
| Working Mode | Sub-mode | Max. Output Power | Rated Load |
|---|---|---|---|
| Monopolar Cut | Pure Cut | 150W | 500Ω |
| Monopolar Cut | Blend Cut Ⅰ | 120W | 500Ω |
| Monopolar Cut | Blend Cut Ⅱ | 100W | 500Ω |
| Monopolar Coagulation | Fulgurate Coagulation | 120W | 500Ω |
| Monopolar Coagulation | Spray Coagulation | 100W | 500Ω |
| Bipolar Coagulation | Standard Coagulation | 80W | 100Ω |
| Ligasure (Vessel Sealing) | – | 150W | 25Ω |
Key Technical Features

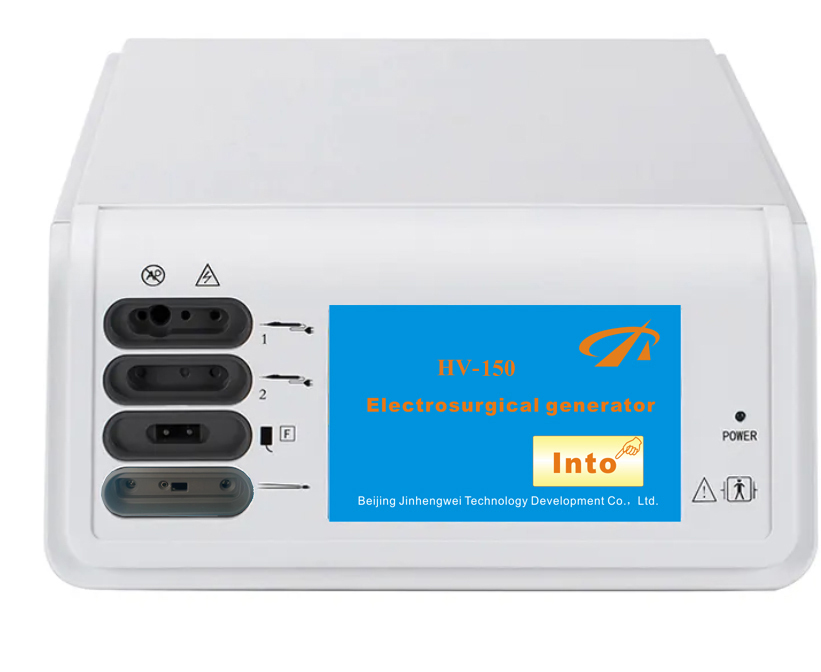

- Intelligent Device: 7 INCH LCD TOUCH SCREEN; Intuitive design and user-friendly set-up; Monopolar and bipolar functions; Clean and sharper image quality; Touch-screen operation for function/ mode adjustment.
- REM (Return Electrode Monitoring): Continuously monitors patient impedance levels; Deactivates the generator if a fault in patient/return electrode contact is detected.
- Automatic Self-Test: Performs comprehensive internal test once switched on.
- Real-time Monitoring and Instance Response System for Tissue Density: Samples current and voltage 450,000 times per second; Responds to tissue impedance changes in less than 10 milliseconds; Delivers optimal energy output for different tissue types.
- Ligasure (Vessel Sealing): Enables permanent sealing of blood vessels with diameter up to 7mm under bipolar coagulation.
Accessories
Standard & Optional Accessories
- Disposable ESU Pencils
- Disposable ESU Plate
- Two Button Footswitch
- Reusable Plate Cable
- Bipolar Forceps
- Bipolar Forceps Cable
- Ligasure Instruments (Optional free standard accessory: Select one)
- Straight — 37cm/10mm
- Straight — 20cm/10mm
- SmallJaw —19cm/16.5mm
Compatibility
- HV-150 can be compatible with Valleylab Instruments
- Other types of ligasure instruments available for purchase
Certification
- ISO9001 & ISO13485 Certified
- FDA Verified (510K No. 130760)
