Horizontal Pressure Steam Sterilizer (Microcomputer Control)
π Product Overview
This microcomputer-controlled horizontal pressure steam sterilizer uses gravity exchange technology to fully remove cold air from the chamber, ensuring reliable sterilization. Its intelligent system automatically adjusts steam intake and exhaust based on chamber temperature, making it ideal for clinics, hospitals, and research institutes that need to sterilize surgical instruments, fabrics, glassware, and culture media.
β¨ Key Features
- Microcomputer Automation: Fully controlled sterilization process with intuitive operation for consistent results.
- Integrated Drying Function: Built-in drying cycle for medical dressings and instruments, eliminating the need for separate drying equipment.
- Comprehensive Safety Protection: Over-temperature and over-pressure auto-protection, plus a safety valve that opens automatically when pressure exceeds 0.24MPa.
- Pressure-Interlocked Door: The door remains locked until chamber pressure drops to 0.02MPa, and the unit wonβt start if the door is not sealed properly.
- Water Shortage Protection: Automatically cuts off power and triggers an alarm if water levels are low.

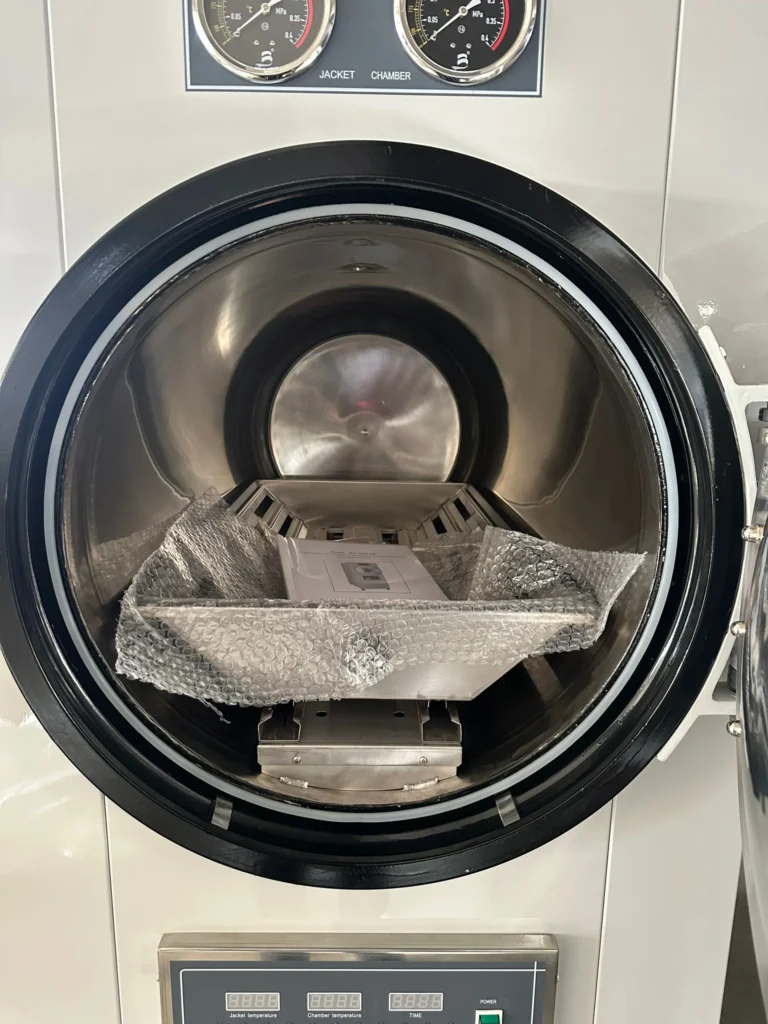

- Durable & Convenient: Stainless steel chamber for long life, plus a built-in printer to record sterilization cycles for traceability.
π Technical Specifications
| Specification | SM-150YDB | SM-200YDB | SM-280YDB |
|---|---|---|---|
| Sterilizing Chamber Volume | 150L (Ο440Γ1000mm) | 200L (Ο515Γ1000mm) | 280L (Ο600Γ1000mm) |
| Working Pressure | 0.22MPa | 0.22MPa | 0.22MPa |
| Working Temperature | 134β | 134β | 134β |
| Temperature Adjustment Range | 40~134β | 40~134β | 40~134β |
| Sterilization Time Range | 0~99min | 0~99min | 0~99min |
| Drying Time Range | 0~99min | 0~99min | 0~99min |
| Temperature Accuracy | β€Β±2β | β€Β±2β | β€Β±2β |
| Power Supply | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz |
| Overall Dimensions (WΓDΓH) | 1400Γ650Γ1590mm | 1400Γ750Γ1700mm | 1540Γ850Γ1790mm |
| Transport Dimensions (WΓDΓH) | 1560Γ860Γ1820mm | 1560Γ910Γ1880mm | 1680Γ1060Γ2050mm |
| Gross Weight / Net Weight | 422kg / 368kg | 469kg / 404kg | 577kg / 492kg |
π― Why Choose Our Microcomputer-Controlled Sterilizer?
- Precision Control: Microcomputer technology ensures accurate temperature and pressure regulation for consistent sterilization.
- Traceability: Built-in printer provides cycle documentation to meet regulatory requirements.
- Operational Safety: Multi-layer safety features protect both your staff and valuable equipment.
- All-in-One Efficiency: Combines sterilization and drying in one unit to save time and space.
